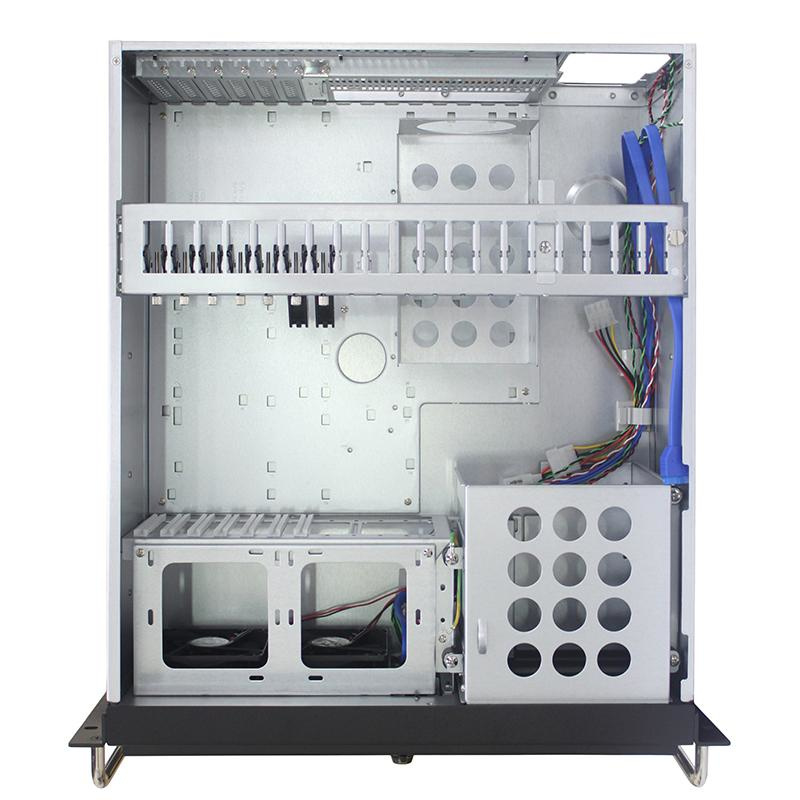

IPC-C4S-BH 19" 4HE PC server/PC behuizing
Kenmerken
Conditie | : | Nieuw |
Type | : | Rack |
Beschrijving
IPC-C4S-BH 19" PC behuizing
Dimensions (W x D x H) (with chassis ears)
• mm : 482.6 x 505 x 177
• inches : 19 x 19.9 x 7
Industry Standard
EIA-RS310D
Material
Heavy-duty preplated SGCC cold-rolled steel
Color
Black
Cooling
Standard :
• Front : 2 x 92x25 mm fans
Add-ons :
• Rear : 2 x 60x25mm exhaust fans
• Rear : 2 x 60x38mm exhaust fans
Power Supply
PS2 Single or Mini Redundant power supplier - Please see Optional Product for details
Expansion Slots
• 7 x PCI Slots (Full Height, Full Length). (Standard Specification)
• 14 x Slot Single Board Computing (a.k.a. SBC) rear panel. (See Optional Product)

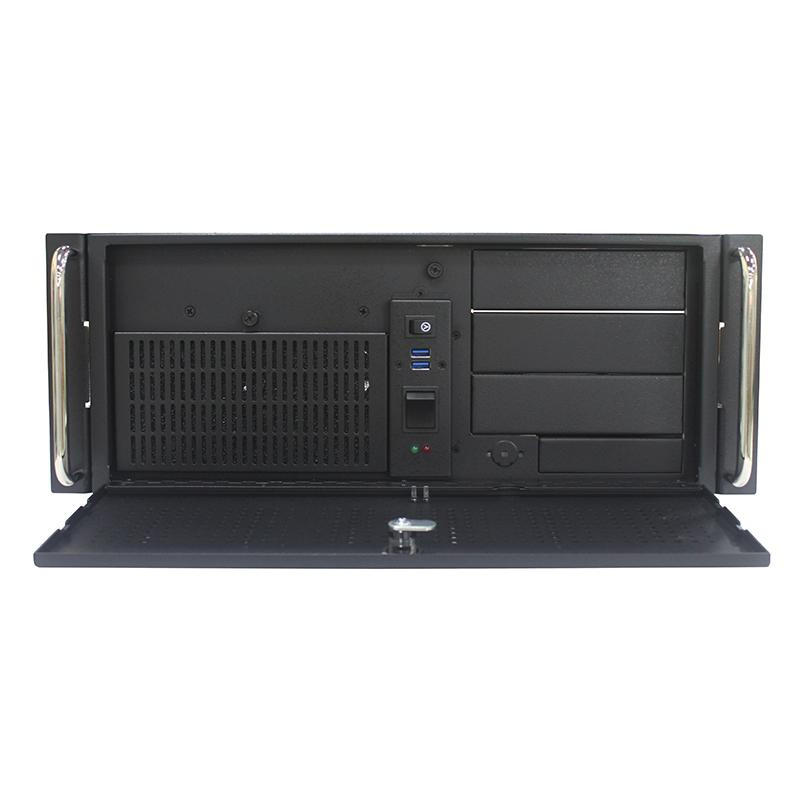

Front Panel
• Power on/off
• System reset
• 2 x USB ports
LED Indicators
• Power
• Drive
System Board
• MB Version : Up to 12”(W) x 10.5”(D) ATX/SSI CEB compliant MB
(or 12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB by adding an optional MB bracket)
• BP Version : (SBC) 14-slot
Drive Bays
• External : 3 x 5.25” & 1 x 3.5”
• Internal : 2 x 3.5” (up to 4)
Storage Temperature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing
Gross Weight (w/o PSU & Rail)
• kgs : 16
• lbs : 35.2
Package Dimension (W x D x H)
• mm : 587 x 625 x 354
• inches : 23.1 x 24.6 x 14
Cubic Feet
5
Container Load Quantity
• 20’ : 190
• 40’ : 390
• 40’ H : 470
